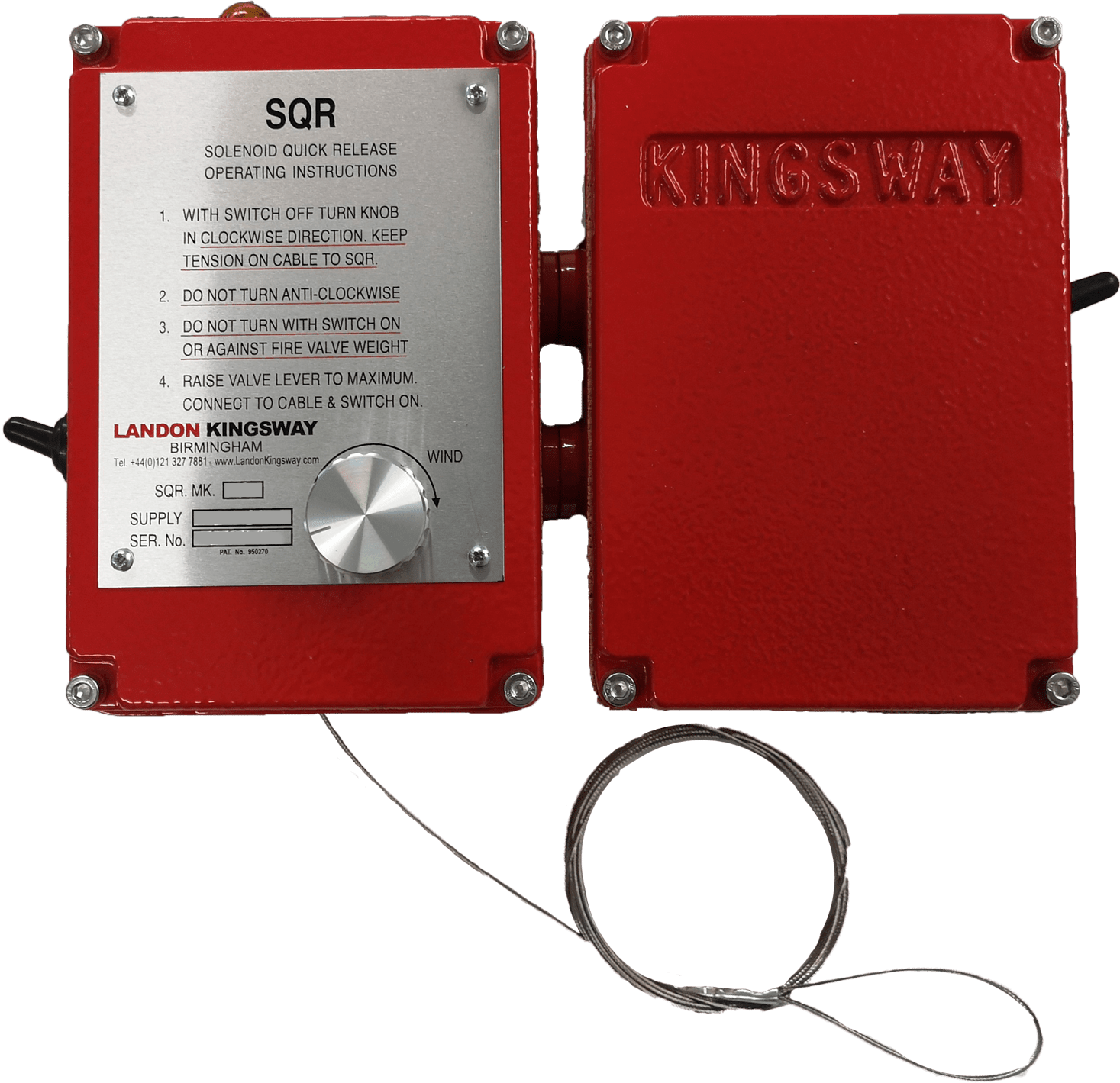

The Landon Kingsway Solenoid Quick Release MKII is designed to provide a simple electro-mechanical release mechanism for gravity operated devices such as the Landon Kingsway free fall fire valve.
The system consists of a steel cable wound around a drum with a solenoid arranged so that when energised ,the drum is locked in place. If the electrical supply to the solenoid is interrupted then the solenoid latch releases the drum and the weight of the attached load causes the cable to unwind.
The MKII incorporates a safe power supply to a float switch whereby the power to the external switch is cut off if there is an emergency. The unit also provides two switched power outputs ,one is normally on and turns off in the event of an alarm , the other is normally off and turns on in the event of an emergency.
Technical Specification
Supply Voltage : 230v AC ,110v AC,24v DC
Power Consumption : 20 Watts
Switched Supply : 8 Amp max
Weight : 3.6 Kg
