Designed specifically to fully comply with BREEAM WAT02 and WAT03 assessment criteria for water
monitoring and leak detection, the Series 7 system will detect any minor and major water leak from both
the site boundary and internally within the building.
This system will identify different flow levels using a pulse sensor sent to the control panel after every 1
or 10 litres of water flow, identifying leakage rates, e.g. continuous, high and/or low level, over set time
periods with a self-learning audit function which monitors normal consumption.
The Series 7 BREEAM compliant water leak detection system reduces consumption of potable water through the effective management and monitoring of a buildings water consumption. Install internally as a single channel system for WATO2 BREEAM compliance or with an additional boundary water meter for BREAM WAT03 identifying leaks
both internally and from the site boundary.
Multiple isolation valves can be added to protect against the damage and disruption caused by leaks.
Although not a requirement of BREEAM isolation valves are essential to mitigate the risk of water
damage during the construction phase for CIREG compliance.

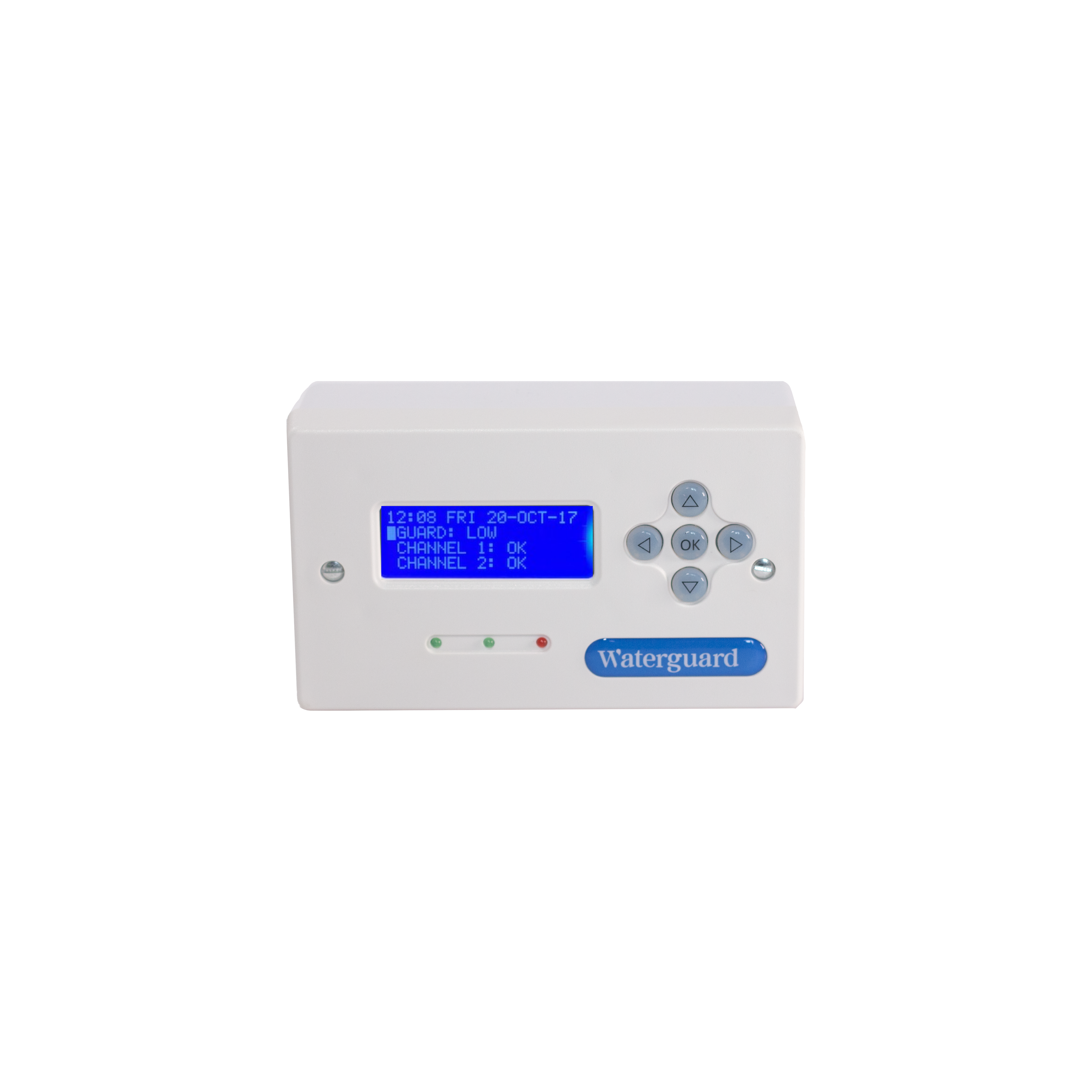

The controller is completely adaptable to suite the user’s requirements and water usage with several
adjustable parameters and operational features listed.
The Series 7 can analyse water usage by volume per ½ hour, hour, guard period or 24-hour period. The
system has two separate menus for perimeter setting and day to day operation. The Guard Menu is used to
input user specific requirements as below:
• Maximum litre allowances in each guard period or per 24 hours.
• Maximum override time.
• Guard mode to suit buildings timetable.
• Times the building is occupied
Operational Features and Benefits
• Activated when the flow of water passing through the water meter is at a flow rate above a pre-set maximum for a pre-set time period.
• Able to identify different flow and therefore leakage rates.
FEATURES
Audible and visual alarm on leak detection
Compatible with pulsed water meters ,1& 10 &100 litres a pulse
Available for pipe sizes up to 200mm
12v and 240v versions
